Bis zu 5,0 t/h
Drei Modellle für kleine Produktionslinien und größere Verarbeitungsaufgaben
KM-STEINAUSLESER
KM-Steinausleser
KM-Steinausleser
Serie
Leistungsfähige Entsteinungstechnik für Getreide, Cerealien und andere Schüttgüter. Entwickelt zur Abscheidung von Steinen, Glas, Metallpartikeln und anderen schweren Verunreinigungen nach spezifischem Gewicht für saubereres Rohmaterial und sichere nachgelagerte Verarbeitungsprozesse.
Trennung nach spezifischem Gewicht
Entfernt Steine, Glas und Metalleinschlüsse aus dem Produktstrom
Für Lebensmittel- und Industrieanwendungen
Geeignet für Getreide, Cerealien, Sonnenblumenkerne, Kunststoffmahlgut und Schlackenfraktionen
3 Modellle verfügbar
1.87–9.2 kW
installierte Leistung
Product overview
Reliable stone separation for cleaner grain and protected processing lines
The KM Destoner is designed for the efficient removal of heavy foreign impurities from grain and other bulk materials. It helps separate stones, glass, metal particles and similar contaminants before further processing, improving product purity and reducing the risk of damage to downstream equipment.
This equipment can be used in grain cleaning, flour and food processing lines, as well as in applications involving cereals, sunflower and pumpkin kernels, and other free-flowing products. Due to its practical construction and stable separation process, the KM series is suitable for both compact production setups and larger processing operations.
The operating principle is based on separating material into fractions according to specific weight. Using controlled airflow together with vibration, the machine creates conditions in which heavier impurities move in a different direction from the cleaned product, allowing reliable removal of dense unwanted particles from the main flow.
The KM-Steinausleser series includes several models for different capacity requirements, from KM-0,3 to KM-5,0. This allows processors to choose the right solution for their throughput needs while maintaining stable separation quality, easy integration into the line and dependable day-to-day performance.
Produktvideo
KM-Steinausleser im Betrieb
Watch how the KM-Steinausleser separates heavy foreign impurities from grain and bulk materials, helping remove stones, glass and metal particles before further processing.
How the KM-Steinausleser works
01
Material enters the separation zone
Grain or other free-flowing product is fed onto the working surface where the destoning process begins.
02
Separation by specific weight
The machine divides the material into fractions according to specific weight, allowing heavy impurities to behave differently from the purified product.
03
Heavy contaminants are removed
Stones, glass, metal particles and similar dense inclusions are separated from cereals, grains and other processed materials.
04
Modell range for different capacities
The KM series includes KM-0,3, KM-1,6 and -5,0 models for throughput from 0.3 to 5.0 t/h with power from 1.87 to 9.2 kW.
KM-STEINAUSLESER-SERIE
Compare KM Destoner Modells
Explore the available KM-Steinausleser models and compare throughput, power consumption, machine weight and overall dimensions in one clear section.

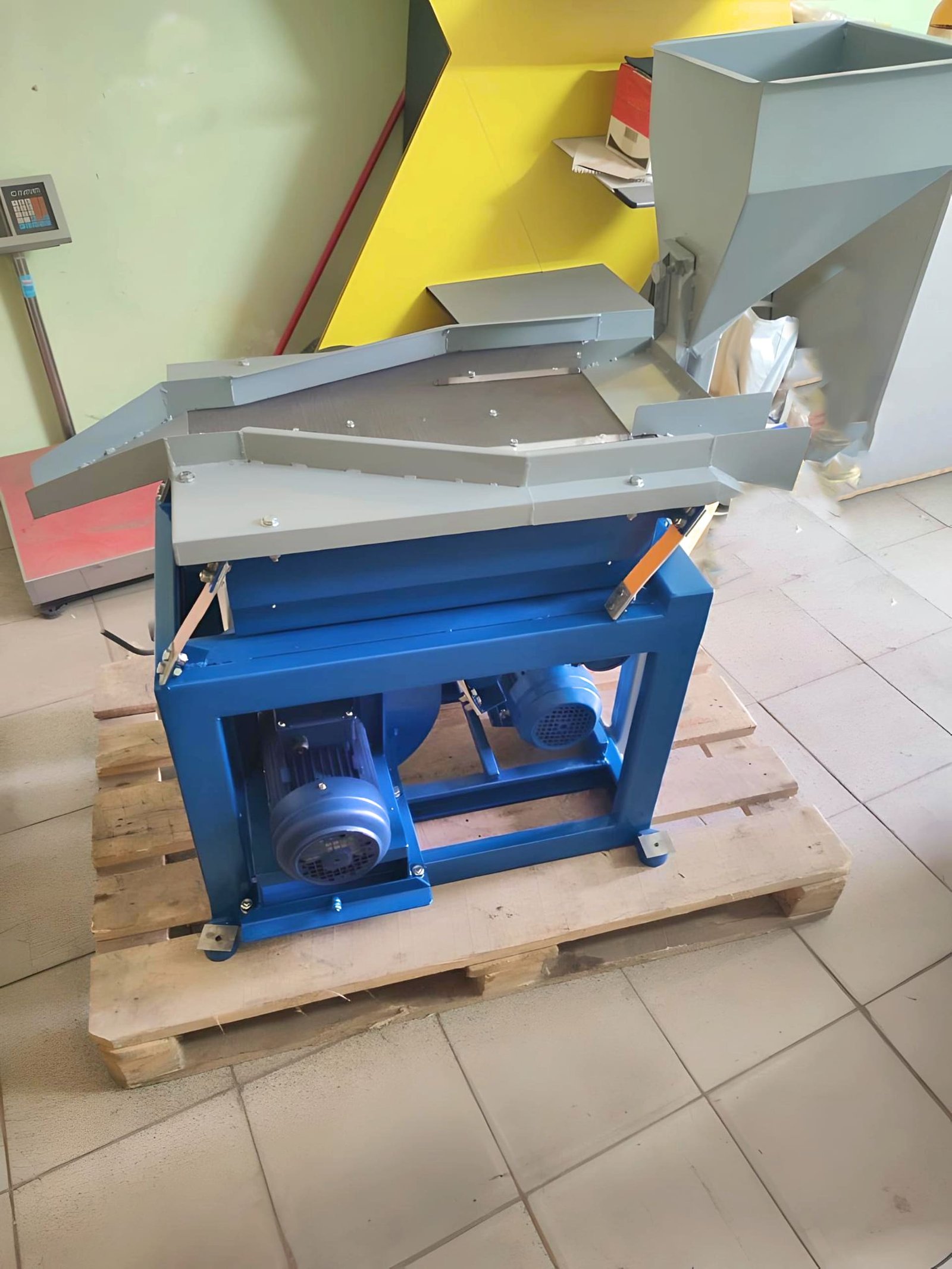

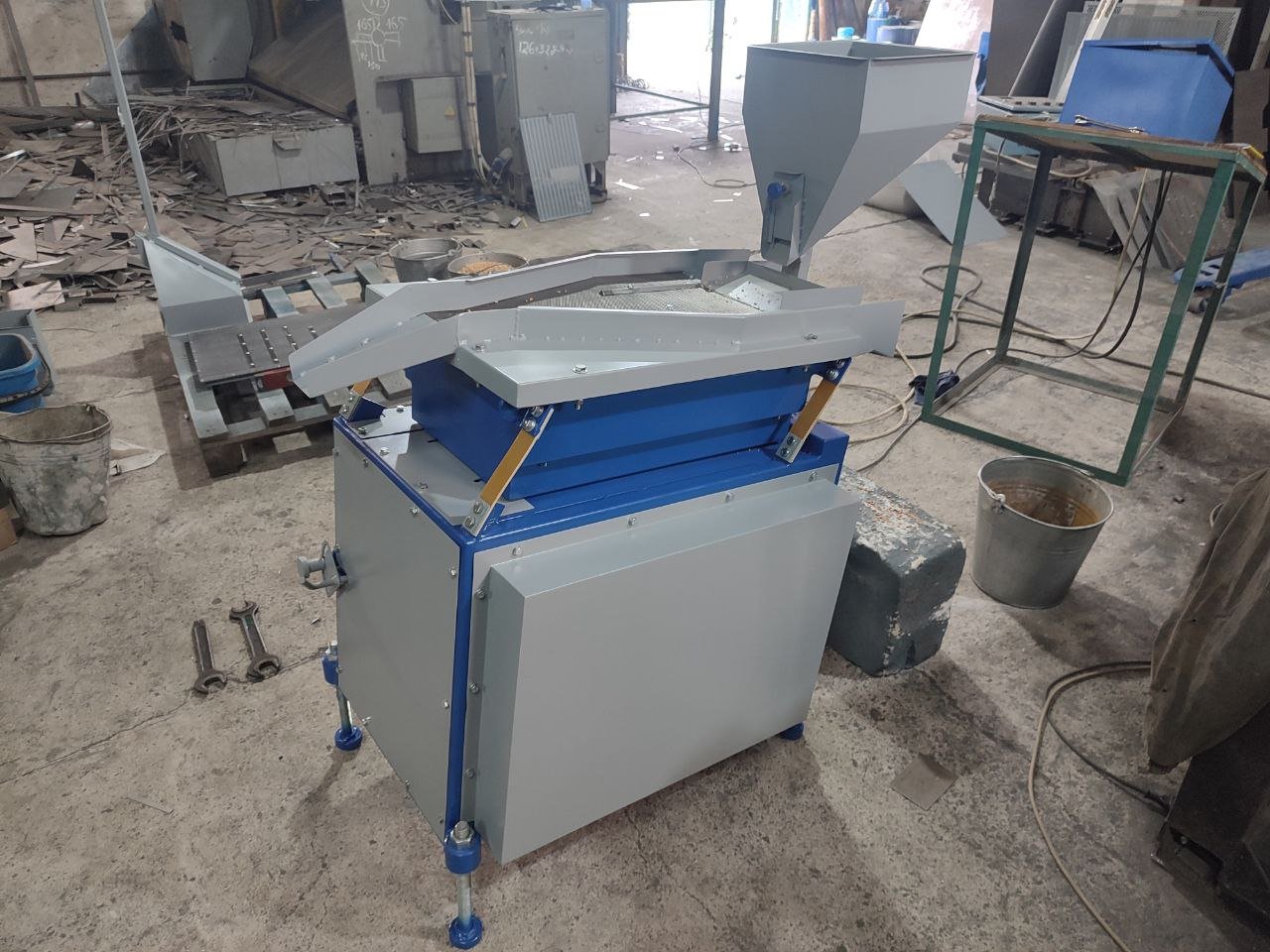

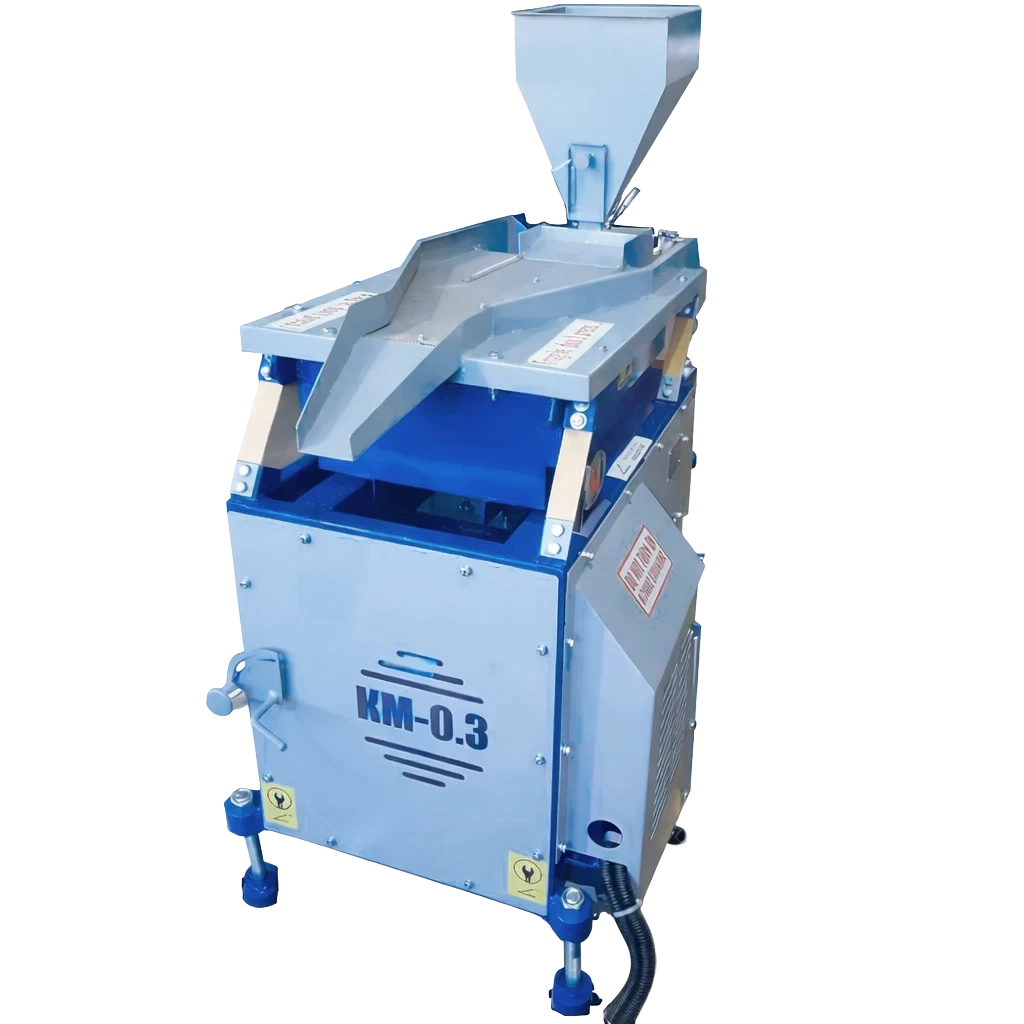

KM-0,3
KM-0,3
Throughput0.3 t/h
Electricity1.87 kW
Dimensions1000 × 550 × 1100 mm

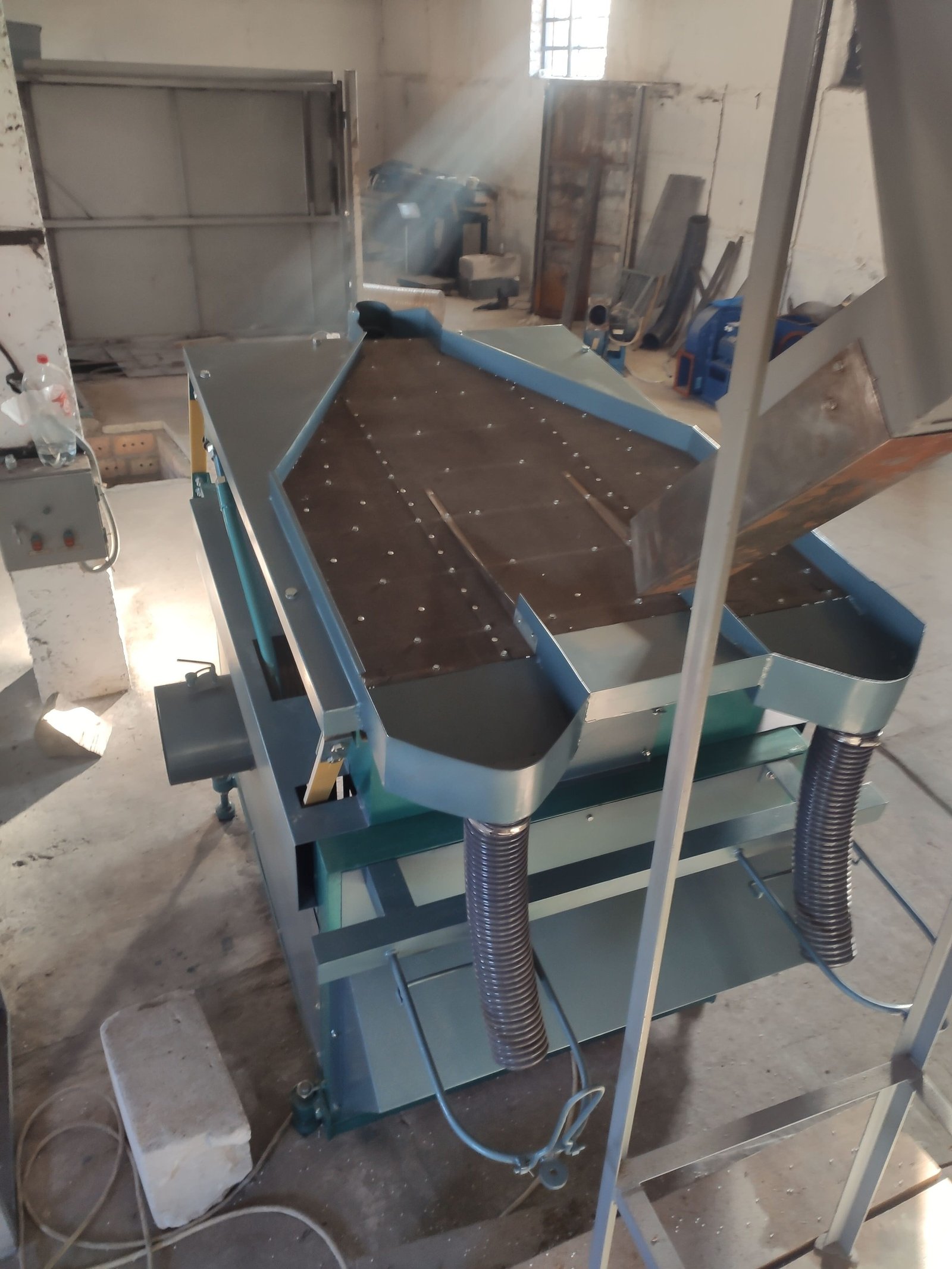

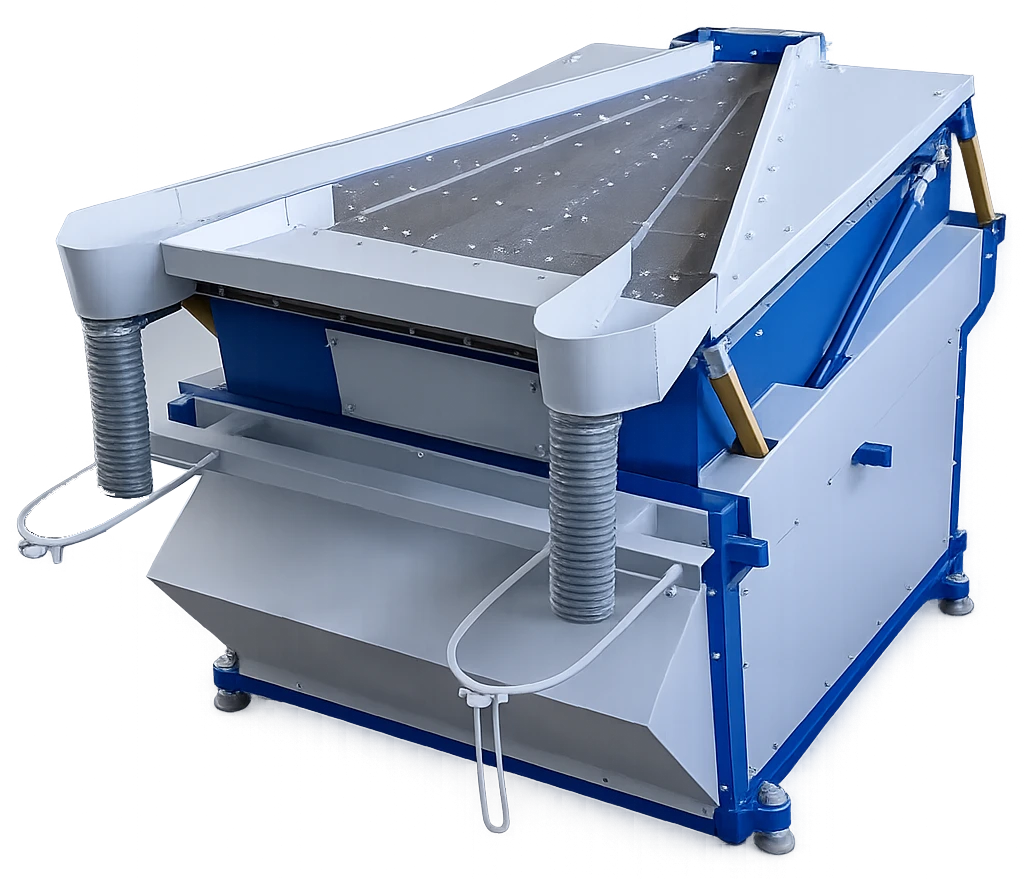

KM-1,6
KM-1,6
Throughput1.6 t/h
Electricity5.5 kW
Dimensions2160 × 1100 × 1350 mm

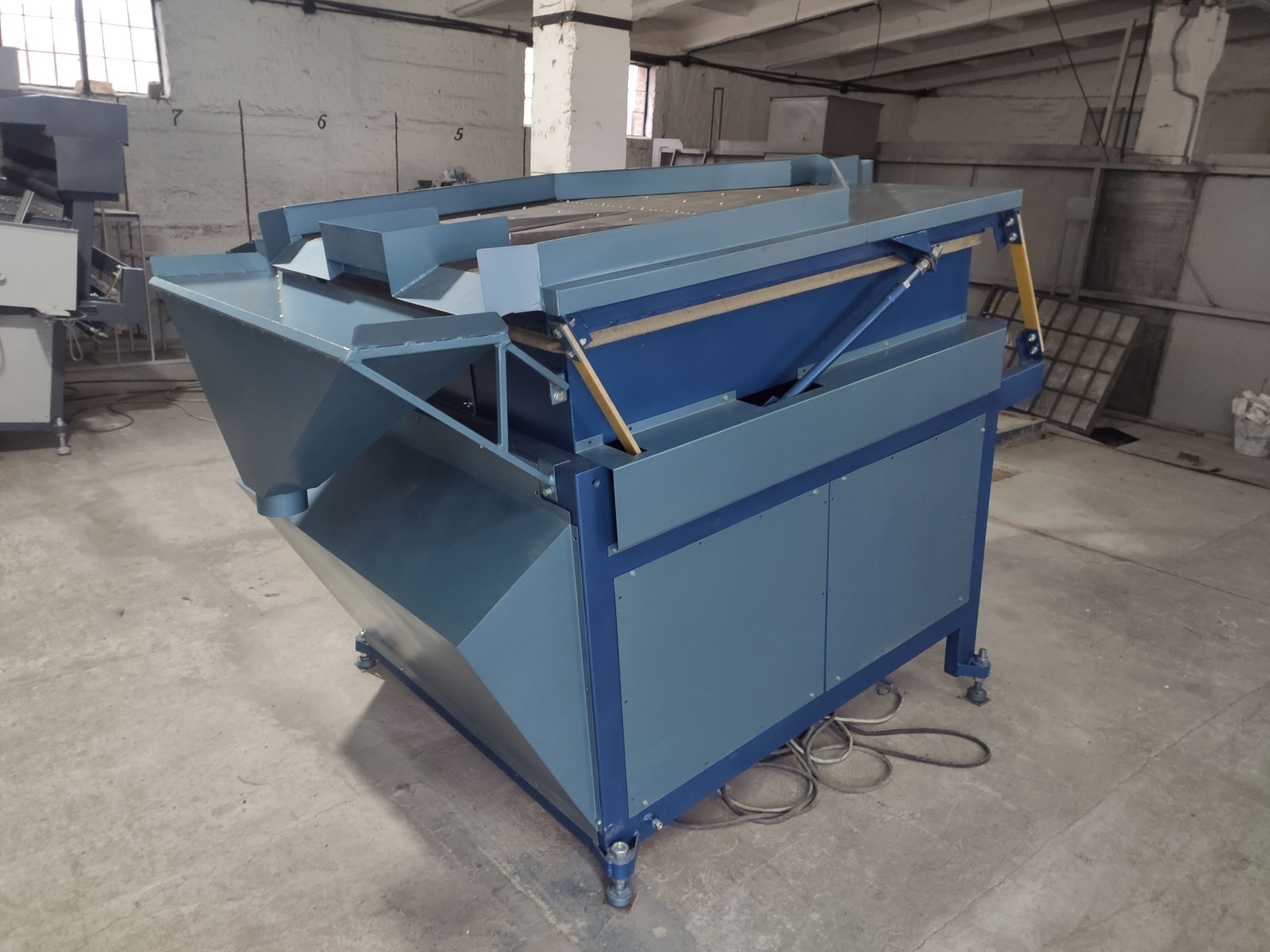

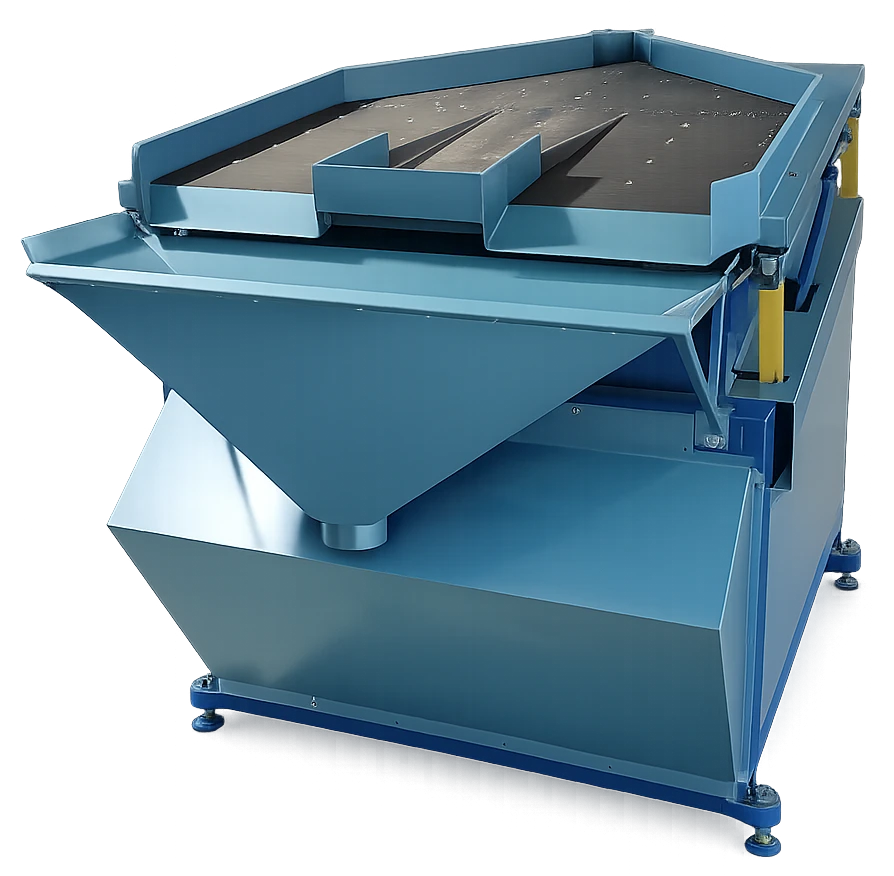

KM-5,0
KM-5,0
Throughput5.0 t/h
Electricity9.2 kW
Dimensions2500 × 1400 × 1950 mm
Technical data
Full specification table
| Modell | Leistung, t/h | Electricity, kW | Net weight, kg | Länge, mm | Breite, mm | Höhe, mm |
|---|---|---|---|---|---|---|
| KM-0,3 | 0.3 | 1.87 | 120 | 1000 | 550 | 1100 |
| KM-1,6 | 1.6 | 5.5 | 500 | 2160 | 1100 | 1350 |
| KM-5,0 | 5.0 | 9.2 | 900 | 2500 | 1400 | 1950 |
Interaktive Maschinenübersicht
Entdecken Sie die 3 zentralen Arbeitszonen des KM-Steinauslesers
Hover or tap a highlighted point to see how the KM-Steinausleser loads material, separates heavy impurities on the working table and unloads the cleaned product together with the removed heavy fraction.
Overview mode
Full machine view
Machine Overview
Full machine view
The KM-Steinausleser is designed to remove stones and other heavy impurities from grain and bulk materials. Select a machine zone to focus on loading, the working table and discharge flow.
01
Loading Zone
The product enters the machine through the loading area and is distributed onto the working surface. Stable and even feeding is important for smooth operation and consistent separation quality.
02
Destoning Table
This is the main working area of the KM machine. On the table, the product is separated according to specific weight, allowing grain to move differently from stones, glass, metal particles and other dense impurities.
03
Discharge Zone
After separation, the cleaned product and the removed heavy fraction are discharged through separate outlets. This makes collection easier and helps integrate the machine into a continuous processing line.
Kontaktieren Sie uns
Senden Sie Ihre Anfrage
Tell us what kind of equipment you need, the required capacity and your target market or destination. We will get back with the relevant configuration and commercial details.
Galerie
Sehen Sie die KM-Serie im realen Betrieb
Explore the KM grain cleaner across different configurations, working environments and installation formats. The gallery highlights key machine details, real production setups and optional equipment used to adapt the system to specific grain cleaning tasks.
